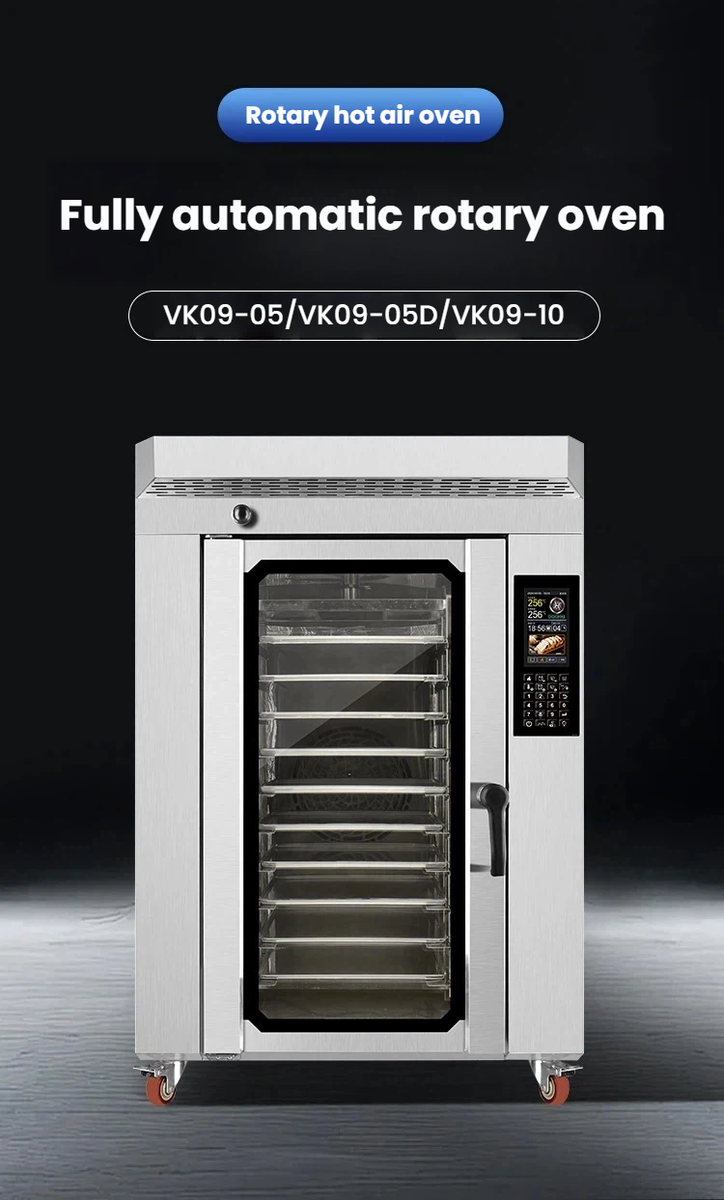

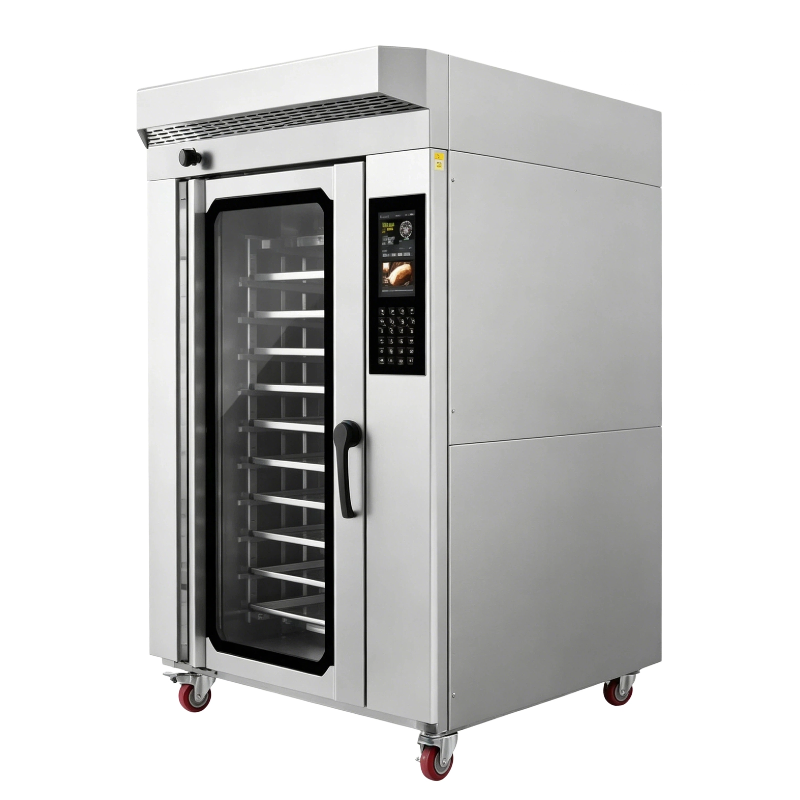

Rotary Rack Oven - 10 Trays

Gas or diesel rotary rack oven taking a full rack of ten 600×400 mm trays, with steam option and digital control. Fully stainless steel body.

Steam option
Auto-cut function
Digital temperature control
No colour variation
10 trays

Delivered across India
GST invoice with every order
Talk to our team before you buy

Not sure which model fits?

Tell us your daily output and we will point you to the right size.

Get a quote

Specifications

Trays	10
Tray size	600×400 mm (24"×16")
Power source	Gas / diesel burner
Size	1080×1400×1960 mm
Power	1.5 KW
Power supply	220 V, 50 Hz
Body	Fully stainless steel
Features	Steam option, auto-cut function, digital temperature control, no colour variation

Dimensions in millimetres. Specifications may change as the machine is improved.

About the Rotary Rack Oven - 10 Trays

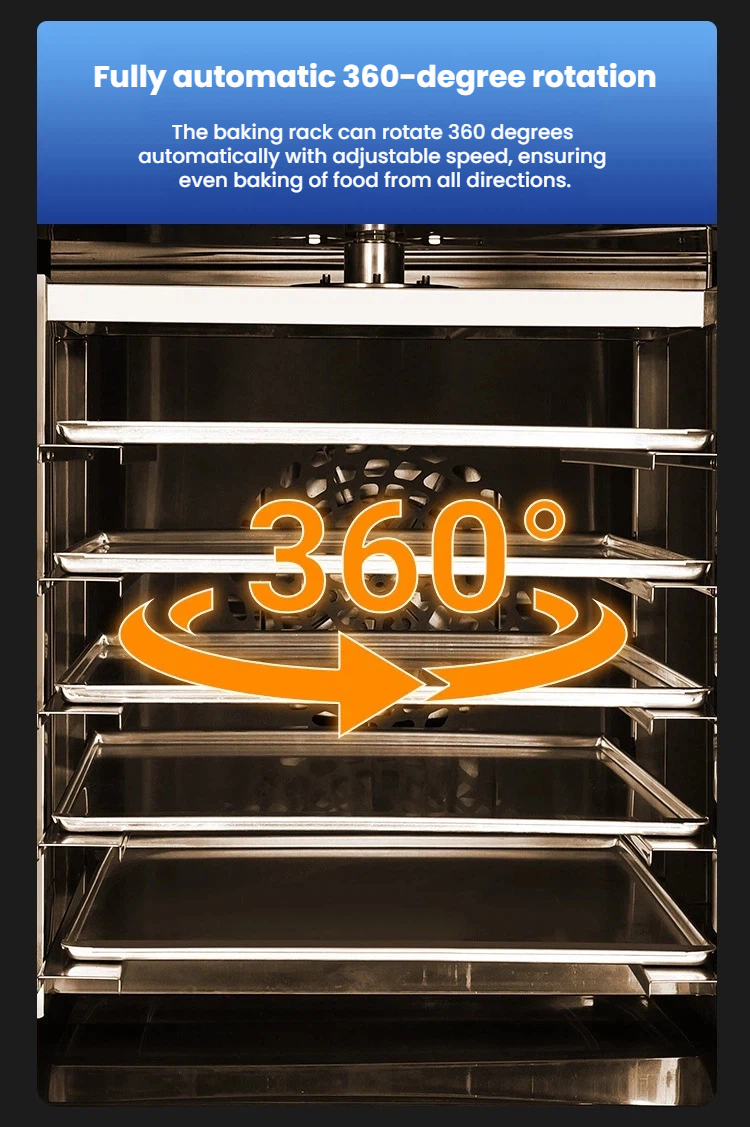

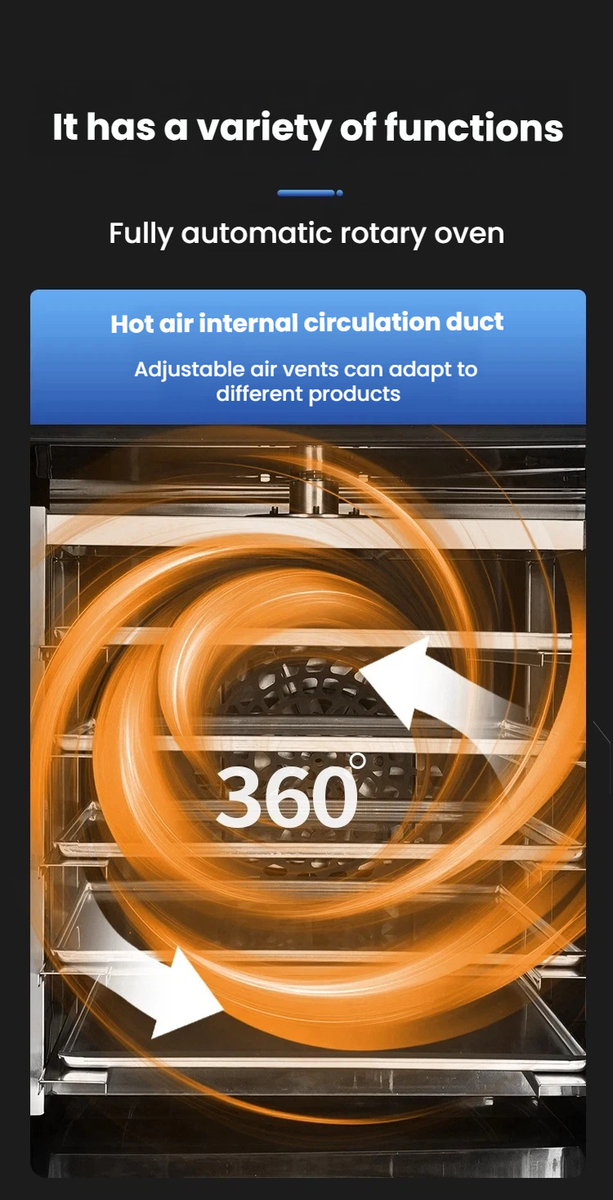

A whole rack of ten 600×400 mm trays goes into the chamber and turns while hot air circulates around it, so every tray bakes in the same time and comes out the same. That is the difference between a rack oven and a deck oven, and it is why bakeries reach for one when volume rather than crust is the problem.

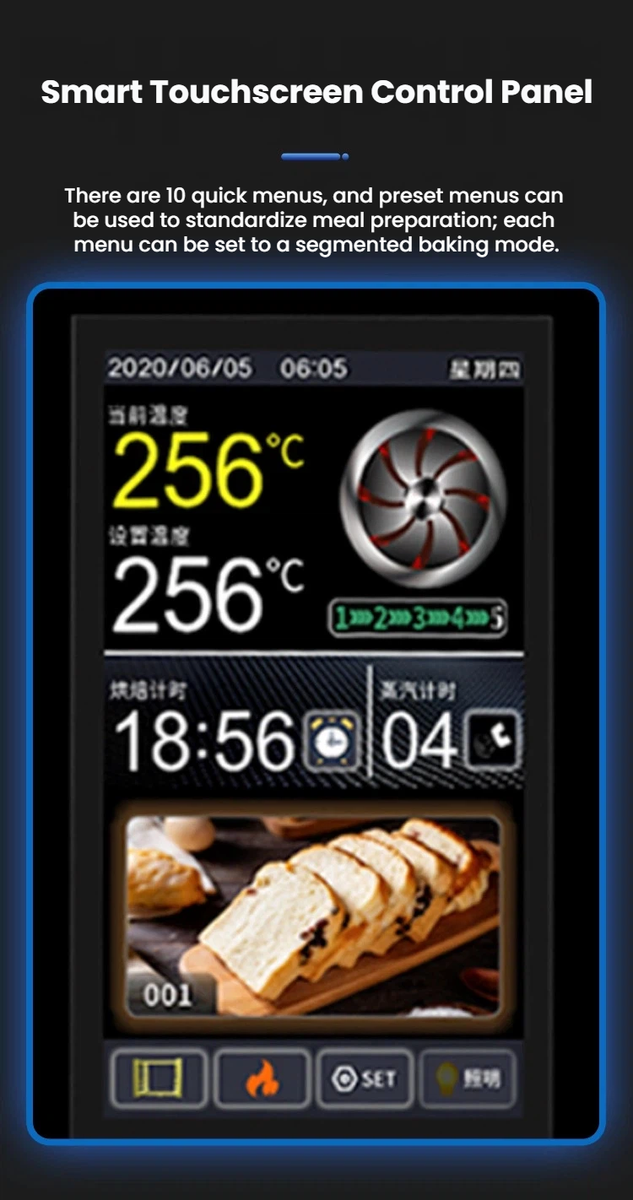

Gas or diesel fired, with a 220 V 50 Hz 1.5 KW electrical supply for the rotation and the controls. The body is fully stainless steel, and the specification includes a steam option, an auto-cut function and digital temperature control.

Steam matters for crust on pan breads and for shine on buns; digital control matters because a rack oven is usually run to a recipe rather than by eye. Rack ovens suit pan breads, buns, cookies and pastries in volume - anything that benefits from even airflow across many trays.

Deck ovens still win for crusty, hand-shaped loaves, where heat from the deck into the base is the point. Most bakeries at this size end up with both. At 1080×1400 mm and 1960 mm tall this is a fixed installation: confirm the fuel supply, the extraction and the door clearance for the rack before ordering.

Frequently asked questions

What are the dimensions?

The Rotary Rack Oven - 10 Trays measures 1080×1400×1960 mm (width x depth x height).

What electrical supply does it need?

It runs on 220 V, 50 Hz, 1.5 KW. The heat comes from the gas / diesel burner.

How many trays does a rack hold?

A full rack takes 10 trays of 600×400 mm (24"×16").

What features does it come with?

Steam option, auto-cut function, digital temperature control, no colour variation.

What is the body made of?

Fully stainless steel.

What other sizes are available?

This category also has the Electric Baking Oven 1 Deck 1 Tray, the Electric Baking Oven 1 Deck 2 Tray and the Electric Baking Oven 2 Deck 4 Tray. Tell us your daily output and we will point you at the right one.

What is the model number?

Model RO-10.
